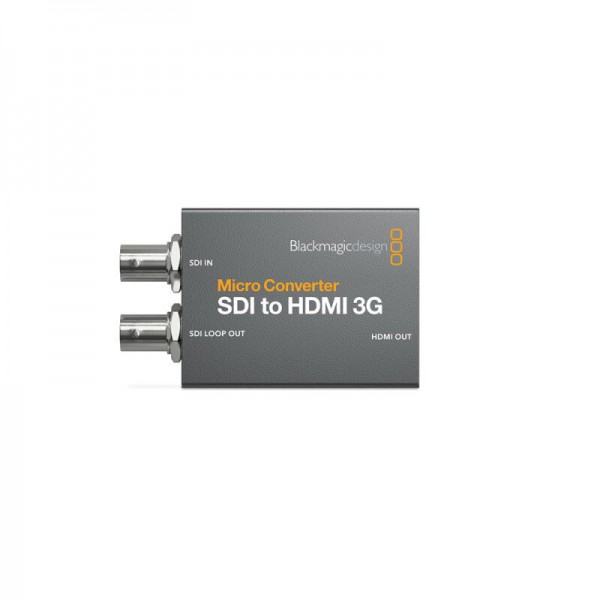

Blackmagicdesign Micro Converter SDI to HDMI 3G PSU

Ideato appositamente per il monitoraggio professionale, questo modello include una LUT 3D a 17 punti per calibrare il colore di monitor, proiettori e televisori. Consente di destinare la LUT 3D all’uscita SDI di loop e supporta i formati DCI e i frame rate del cinema tra cui 1080p 24, 1080p 47.95 e 1080p 48. Ha in dotazione un alimentatore AC da 100 a 240 V con adattatori internazionali e uscita in continua a 5 V.

Technical characteristics

Connections

• SDI video input: 1 x SD, HD or 3G-SDI
• SDI video output: 1 x SDI loop out
• HDMI output: HDMI type A out
• Multi rate support: auto detection of SD or HD
• Updates, configurations and power: USB type‑C

Standards

• SDI video standards: 525i 59.94 NTSC, 625i 50 PAL
• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 25, 1080PsF 29.97, 1080PsF 30, 1080i 50, 1080i 59.94, 1080i 60, 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI video rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition
• SDI color precision: 4:2:2
• SDI color space: YUV
• SDI auto switching: automatically detects SD, HD and level A or B for 3G‑SDI
• HDMI video standards: 525i 59.94 NTSC, 625i 50 PAL, 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60
• HDMI color precision: 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color
• HDMI color space: YUV

Settings control

• Via MacOS and Windows software utility connected by USB

 Operating systems

• Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10, 64-bit

 Software

• Internal software upgrade via USB

Power requirements

• Power consumption: 1.6 W
• Operational voltage range: 4.4 to 5.25 VDC

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 60 °C
• Relative humidity: 0 to 90% non-condensing

 Physical specifications

• Dimensions: 79.4 x 45.8 x 24.8 mm
• Weight: 150 g
